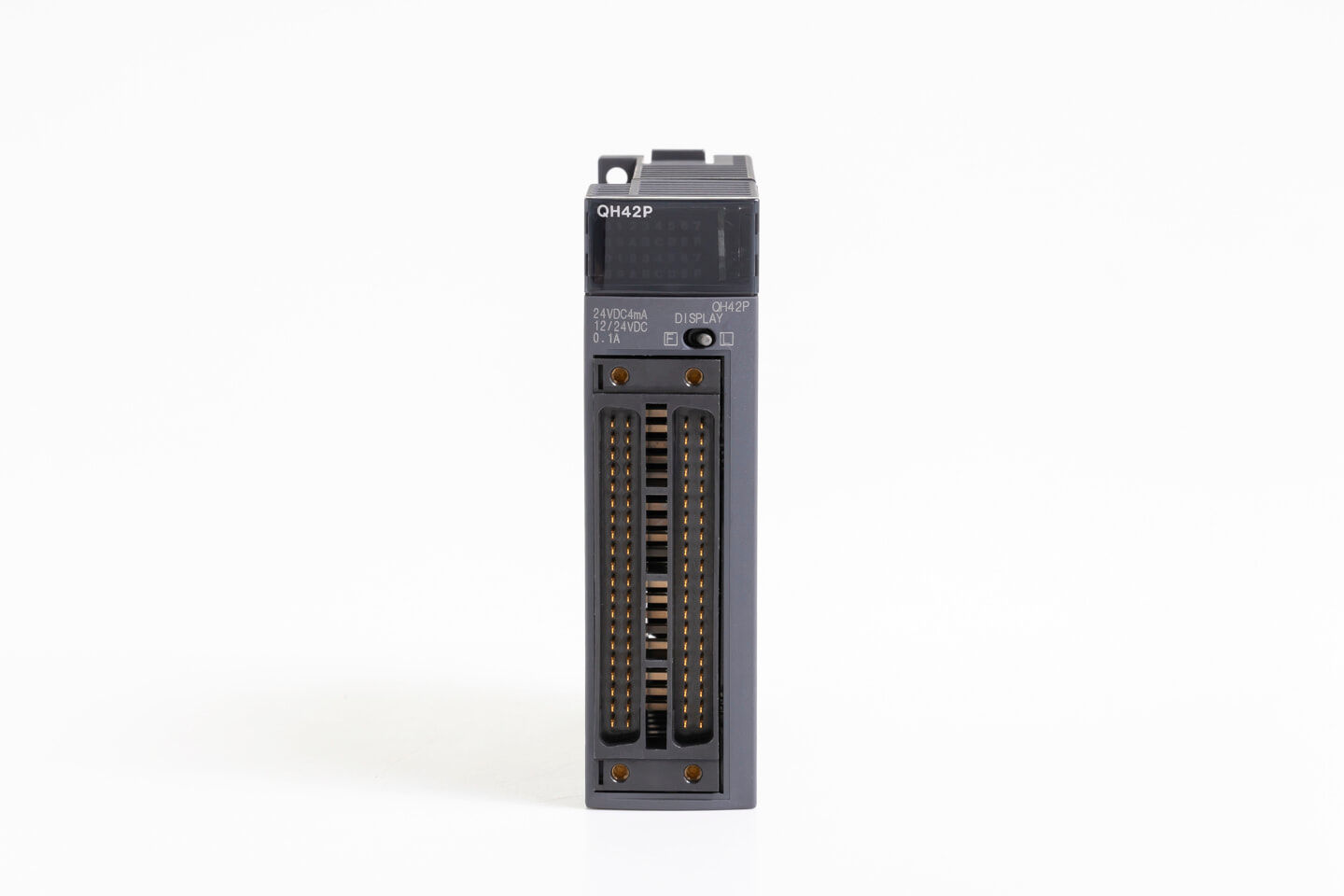

QH42P

QH42P

MELSEC-Q Series I/O Combined Module

  • Technical Information

    Series

    MELSEC-Q SERIES

    Type

    I/O COMBINED MODULE

    Power Supply (V)

    12-24

    Current Type

    DC

    Occupied I/O Points on PLC

    32

    Integrated Digital Inputs

    32

    Integrated Digital Outputs

    32

    Rated Input Voltage (VDC)

    24

    Rated Load Voltage (VDC)

    12-24

    Output Type

    TRANSISTOR

    Output Logic

    SINK

    Wiring

    CONNECTOR

    Int. Current Consumption (A)

    0,13
